| General | |
|---|---|

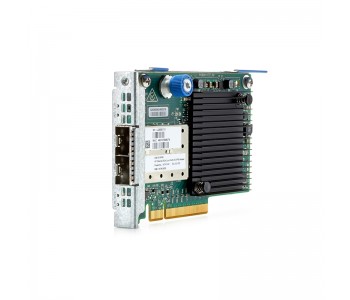

| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | FlexibleLOM |
| PCI Specification Revision | PCIe 3.0 |
| Compatibility Information | |
|---|---|
| Designed For | HPE Apollo 4200 Gen9 for Google ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 ¦ HPE ProLiant DL180 Gen10, DL180 Gen10 Base, DL180 Gen10 Entry, DL180 Gen10 SMB, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL385 Gen10, DL385 Gen10 Base, DL385 Gen10 Entry, DL385 Gen10 High-Performance, DL385 Gen10 Performance, DL385 Gen10 SMB, DL385 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10 for SAP HANA Compute Block, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen9 SAP HANA Scale-out Base Configuration, DL580 Gen9 SAP HANA Scale-up Base Configuration, DX170r Gen10, DX380 Gen10, DX560 Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10 for HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL450 Gen10, XL450 Gen10 200TB Server for Cohesity DataPlatform, XL450 Gen10 400TB Server for Cohesity DataPlatform, XL450 Gen10 700TB Server for Cohesity DataPlatform ¦ HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 8 – 90% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 2 x 25Gb Ethernet – SFP28 |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – 1 year |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, ICES-003, EN55024, WHQL, EN 60950-1, RoHS, ACA, cTUVus, BSMI Class A, VCCI Class A, EN 55022 Class A |
| Networking | |
|---|---|
| Capacity | Jumbo frame size: up to 9.2 KB |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Data Transfer Rate | 25 Gbps |
| Features | VLAN support, IPv6 support, full duplex mode, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, IPv4 support, PXE support, LACP support, LLDP support, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI support, TCP Segmentation Offload (TSO), QoS tagging, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading, TCP/IP checksum offload, RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2 |
| Performance | Bidirectional throughput: 100 Gbps ¦ Bandwidth per port: 50 Gbps |
| Ports | 25 Gigabit Ethernet x 2 |
| Remote Management Protocol | SNMP |
| Status Indicators | Link/activity |
| Power | |
|---|---|
| Power Consumption Operational | 9.7 Watt |
| Processor / Memory | |
|---|---|
| Processor | 1 x Mellanox Technologies Mellanox ConnectX-4 Lx |
| Software / System Requirements | |
|---|---|
| OS Required | SuSE Linux Enterprise Server 11, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, VMware ESXi 5.5, Ubuntu 14.04, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 7.1, Citrix XenServer 6.5, SuSE Linux Enterprise Server 12, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 7.2, VMware ESXi 6.0 |
