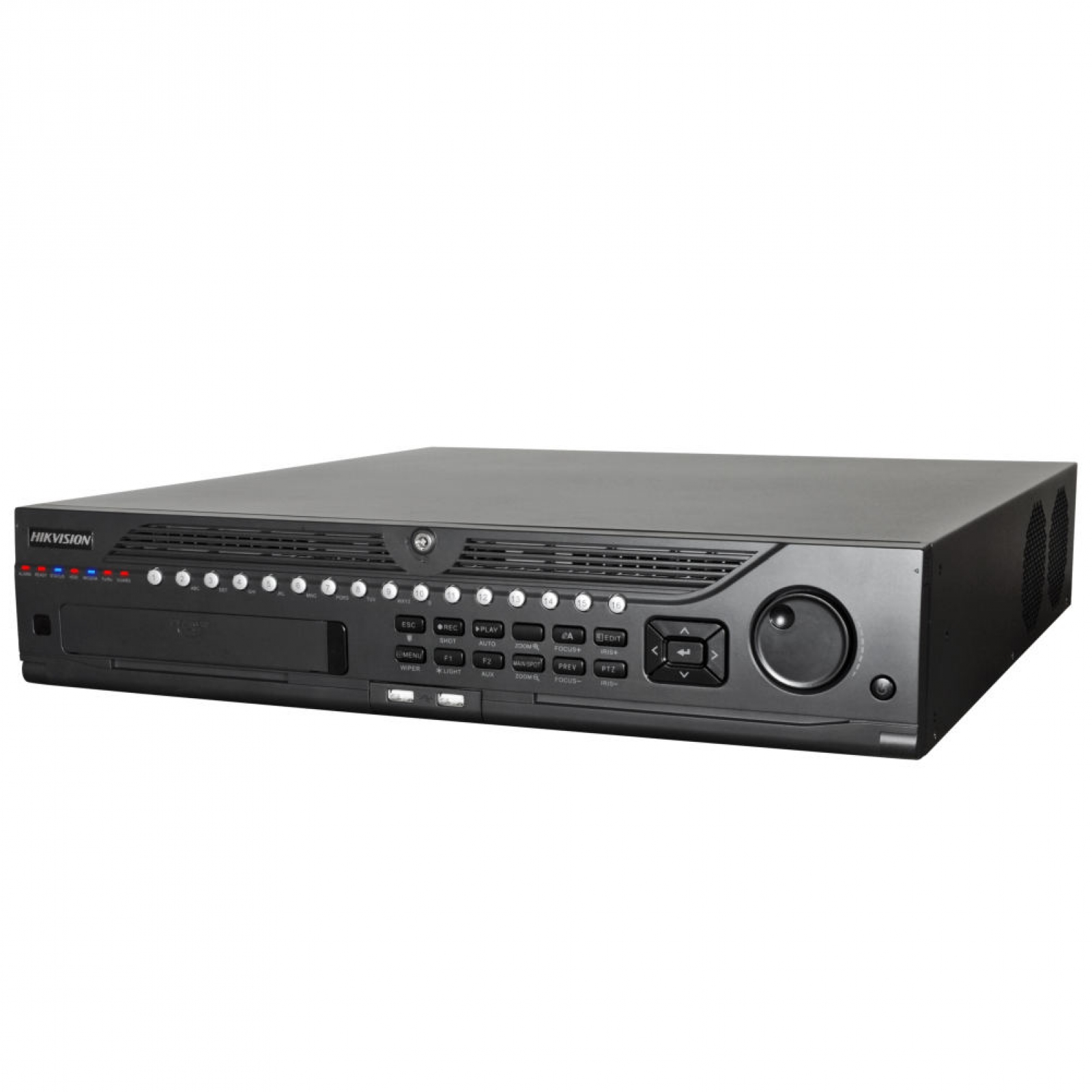

HikVision DS-9664NI-18 NVR
HikVision DS-9664NI-18 NVR
Up to 64 channel IP cameras can be connected
Up to 12 MP high-definition live view, storage and playback
Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
2 HDMI (different source) and 2 VGA (different source) interfaces
8 HDD can be used for continuous video recording
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Compare
Video and Audio IP Video Input 64-ch Up to 12 MP resolution HDMI 1 Output HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60HzVGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI 2 Output 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,2-ch, RCA (2.0Vp-p, 1 KΩ) VGA Output HDMI,VGA CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Incoming Bandwidth 320 Mbps or 200 Mbps (when RAID is enabled),256 Mbps, or 200 Mbps (when RAID is enabled) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Decoding Format H.265+,H.265,H.264+,H.264 Decoding Capability 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps) Synchronous playback 16-ch Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS Remote Connection 128 Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface SATA 8 eSATA 1 eSATA interface Capacity Up to 10TB capacity for each HDD Serial Interface RS-232; RS-485; Keyboard USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Alarm In/Out 16/4
General Power Supply 100 to 240 VAC, 50 to 60 Hz 200 W Consumption ≤ 30 W Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10 to 90 % Chassis 2U Dimension (W × D × H) 445 × 470 ×90 mm (17.5″× 18.5″ × 3.5″) ≤ 10 kg (22 lb)
