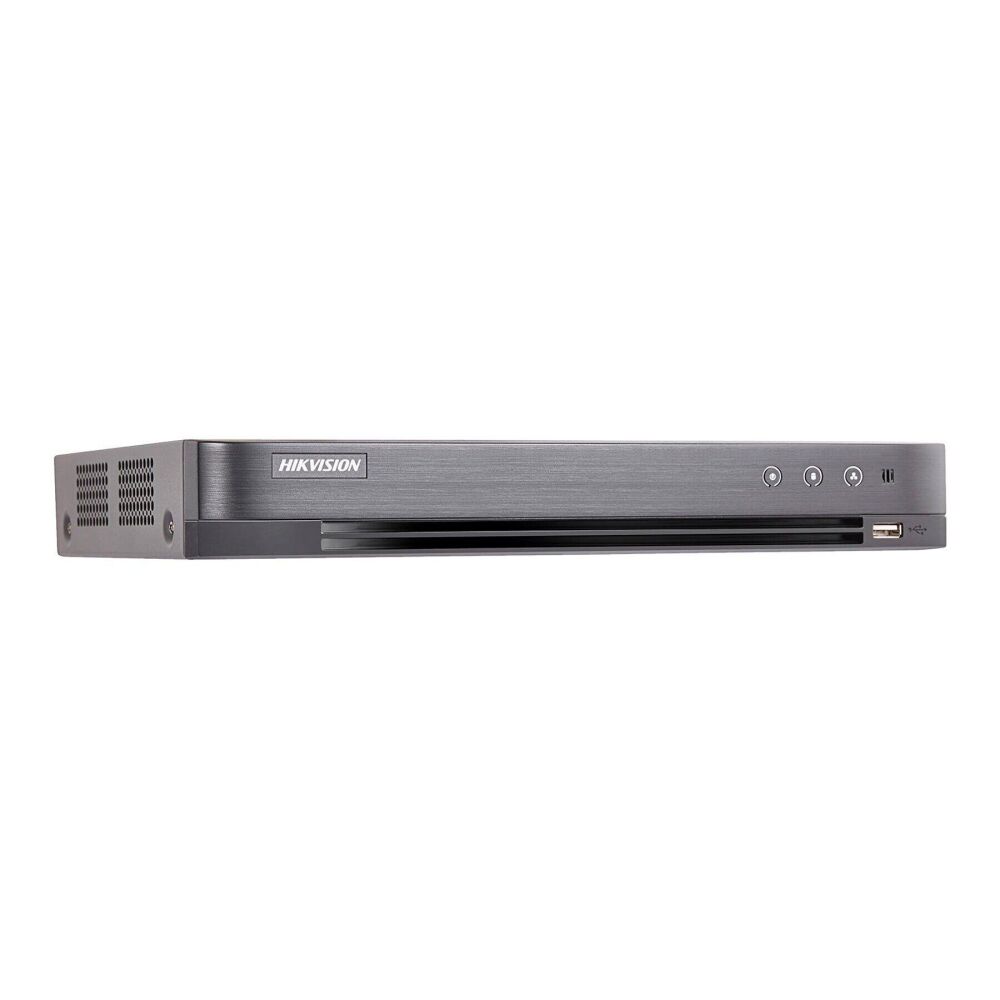

Hikvision DS-7216HQHI-K2 TURBO HD DVR

KSh22,180


  • 16 channels and 2 HDDs 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 24 network cameras can be connected

Share it:
Compare
  • Recording
  • Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding resolutionWhen 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
  • Frame rateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
  • Video bit rate32 Kbps to 6 Mbps
  • Dual streamSupport
  • Stream typeVideo, Video & Audio
  • Audio compressionG.711u
  • Audio bit rate64 Kbps
  • Video and Audio
  • IP video input8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog video input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI input1080p25, 1080p30, 720p25, 720p30
  • CVBS inputPAL/NTSC
  • Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output1-ch, RCA (Linear, 1 KΩ)
  • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous playback16-ch
  • HDTVI input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1/2 of DS-7208HQHI-K2, and for channel 1/2/3/4 of DS-7216HQHI-K2.,
  • VGA/HDMI outputVGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω),
  • Network
  • Remote connections128
  • Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network interface1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
  • Auxiliary interface
  • SATA2 SATA interfaces
  • CapacityUp to 10 TB capacity for each disk
  • Alarm in/outN/A
  • USB interfaceFront panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0,
  • Serial interfaceRS-485 (half-duplex)
  • General
  • Power supply12 VDC
  • Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working humidity10% to 90%
  • Dimensions (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
  • Weights (without HDD)≤ 2 kg (4.4 lb)
  • Consumption (without HDD)≤ 25 W
