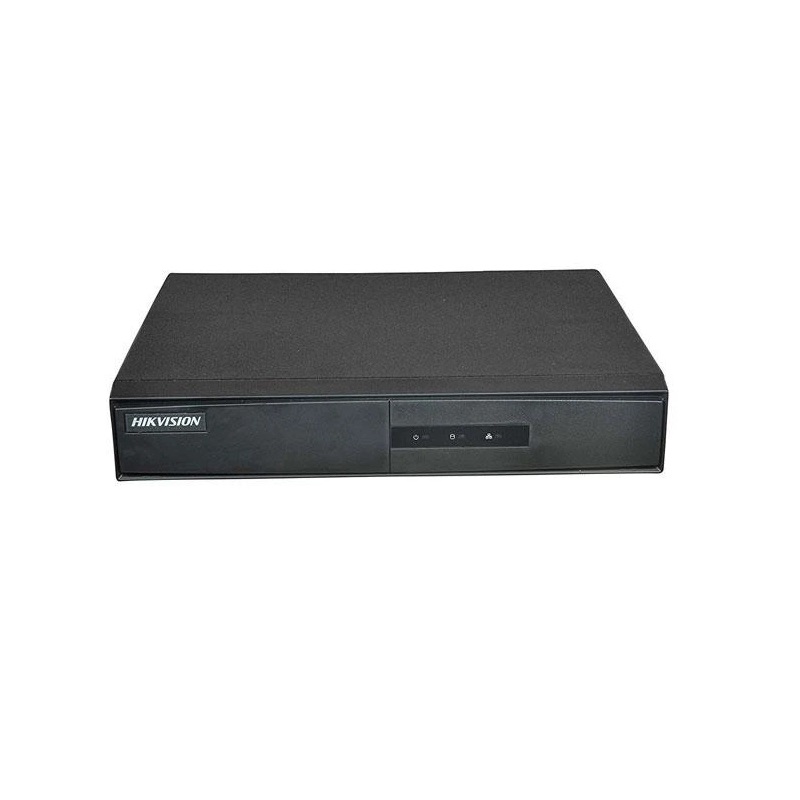

Hikvision DS-7204HGHI-F1 Series Turbo HD DVR
Hikvision DS-7204HGHI-F1 Series Turbo HD DVR
4-ch 1080p Lite 1U H.264 DVR
- 4 channels and 1 HDD 1U DVR
- H.264+ / H.264 video compression
- Encoding ability up to 1080p lite @ 25/30 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 5 network cameras can be connected
Compare
- Recording
- Compresión de vídeoH.264+/H.264
- Encoding resolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
- Frame RateMain stream: ,When 1080p Lite mode not enabled:,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N),
- Vídeo bitrate32 Kbps to 4 Mbps
- Dual streamSupport
- Stream typeVideo, Video & Audio
- Audio compressionG.711u
- Audio bit rate64 Kbps
- Video and Audio
- Entrada de video IP1-ch (up to 5-ch) Up to 960p resolution Support H.264+/H.264 IP cameras
- Analog video input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Turbo HD input1080p25, 1080p30, 720p25, 720p30
- AHD input1080p25, 1080p30, 720p25, 720p30
- HDCVI input1080p25, 1080p30, 720p25, 720p30
- CVBS inputSupport
- Entrada de Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Salida de audio1-ch, RCA (Linear, 1 KΩ)
- Audio bidireccionalReuse the first audio input
- Reproducción síncrona4-ch
- VGA/HDMI output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Red
- Conexiones remotas32
- Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Interfaz de red1, RJ45 10M/100M self-adaptive Ethernet interface
- Auxiliary interface
- SATA1 SATA interface
- CapacidadUp to 6 TB capacity for each disk
- Alarm in/outN/A
- Interfaz USBRear panel: 2 × USB 2.0
- General
- Fuente de alimentación12 VDC
- Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
- Humedad de trabajo10% to 90%
- Weights (without HDD)≤ 1 kg (2.2 lb)
- Consumption(without HDD)≤ 8 W
- Dimensiones (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
