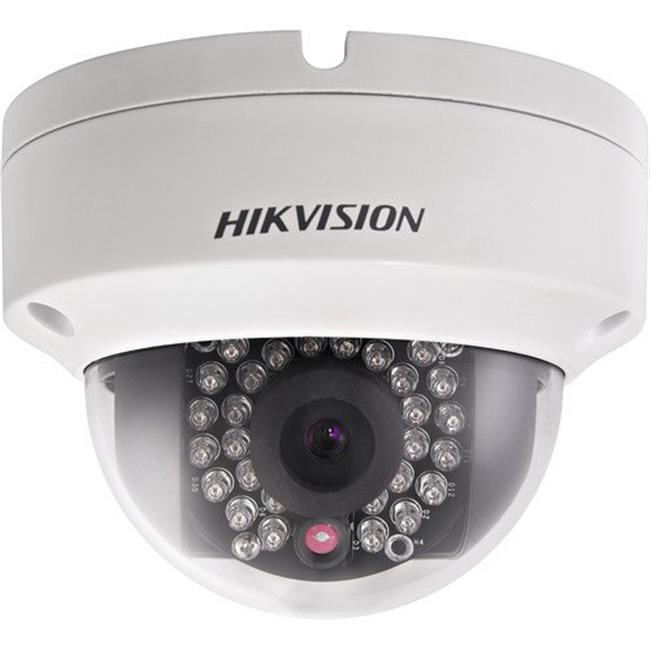

Hikvision-DS-2CD2185FWD-I
Hikvision-DS-2CD2185FWD-I
High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
-S: audio and alarm interface available
Water and dust resistant (IP67) and vandal proof (IK10)
Robust structure design with full metal materials.
Compare
Camera Image Sensor 1/2.5″ Progressive Scan CMOS Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON), 0 lux with IR Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes Wide Dynamic Range 120dB Day & Night IR Cut Filter Angle Adjustment Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
Lens Focus Fixed Lens Type 2.8/4/6/8/12 mm FOV 2.8 mm, horizontal field of view: 102°;4 mm, horizontal field of view: 79°;6 mm, horizontal field of view: 50°;8 mm, horizontal field of view: 40°;12 mm, horizontal field of view: 23° Aperture F2.0 Lens Mount M12
Video Max. Resolution 3840 × 2160 Main Stream 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720);60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288);60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) Video Compression Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264 Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Main Profile/High Profile H.265 Type Main Profile H.264+ Main stream supports H.265+ Main stream supports Region of Interest (ROI) Support 1 fixed region for main stream and sub-stream separately
Audio Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3 Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Network Simultaneous Live View Up to 6 channels API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS User/Host Up to 32 users,3 levels: Administrator, Operator and User Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Image Day/Night Switch Day/Night/Auto/Schedule DNR 3D DNR Image Enhancement BLC/3D DNR/HLC Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Interface On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128G Hardware Reset Yes Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Event Smart Event Line crossing detection, intrusion detection, unattended baggage detection, object removal detection Face Detection Yes Exception Detection Scene change detection
General Firmware Version V5.5.80 General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25%, 6.2 W, PoE(802.3af, 36 V to 57 V,class 3), 9 W Camera Dimension Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″);Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) Camera Weight Camera: 500 g (1.1 lb.)
