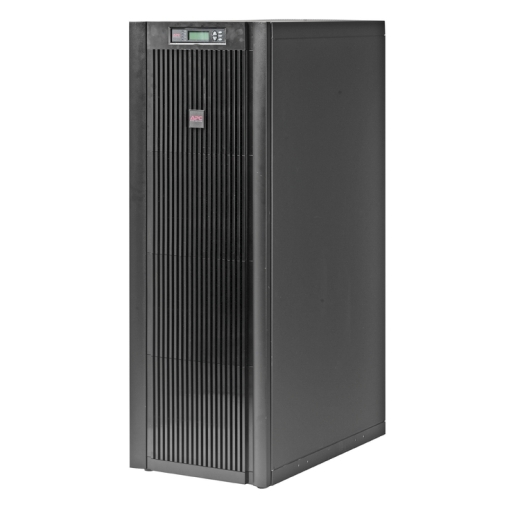

APC Smart-UPS VT 20kVA 400V (SUVTPF20KB4H)
Categories: , Tag: Brand:

APC Smart-UPS VT 20kVA 400V (SUVTPF20KB4H)

KSh1,417,920

Max. Capacity Used

100%

Output power capacity

16.0kWatts / 20.0kVA

Output Connections

(1) Hard wire 5-wire (3P + N + E) (Battery Backup)
(1) Hard wire 4-wire (3P + E) (Battery Backup)
(1) Screw terminals (Battery Backup)

Nominal Output Voltage

400V 3PH

Nominal Input Voltage

400V 3PH

Input Connections

Hard wire 5-wire (3P + N + E)

Maximum Input Current

27.0A
Add to Wishlist
Add to Compare
Share it:
Compare

Output

Max Configurable Power (Watts)

16.0kWatts / 20.0kVA

Output Voltage Note

Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage

Output Voltage Distortion

Less than 5 % at full load

Output Frequency (sync to mains)

47 – 53 Hz For 50 Hz nominal Sync to mains, 50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised

Other Output Voltages

380 V, 415 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Maximum Output Current

32

Bypass

Built-in maintenance bypass, Built-in static bypass

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

304 – 477V

Other Input Voltages

380 V, 415 V

Input Power Factor at Full Load

0.98

Batteries & Runtime

Battery type

VRLA

Included Battery Modules

4

Typical recharge time

5hour(s)

Nominal Battery Voltage

+/- 192 V (split battery referenced to neutral)

Expected Battery Life (years)

3 – 5

RBC Quantity

4

Battery Charge Power (Watts)

1.958kWatts

Extendable Run Time

1

End of Discharge Battery Voltage

+/- 154 V

Runtime

View Runtime Graph
View Runtime Chart

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

DB-9 RS-232, Smart-Slot

Pre-Installed SmartSlot™ Cards

AP9631

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Physical

Maximum Height

1490MM, 149.0CM

Maximum Width

523MM, 52.3CM

Maximum Depth

842MM, 84.2CM

Net Weight

599.09KG

Shipping weight

630.0KG

Shipping Height

1643MM, 164.3CM

Shipping Width

650MM, 65.0CM

Shipping Depth

1062MM, 106.2CM

Color

Black

Units per Pallet

1.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 1015.9meters

Storage Temperature

-50 – 40 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

51.3dBA

Online thermal dissipation

3112.0BTU/hr

Protection Class

IP20

Conformance

Approvals

C-Tick, CE, EN 50091-2, EN/IEC 62040-3, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, RCM, VFI-SS-111

Standard warranty

1 year repair or replace, Start-Up Service

Sustainable Offer Status

RoHS

Compliant

PEP

Available in Documentation tab

EOLI

Available in Documentation tab
